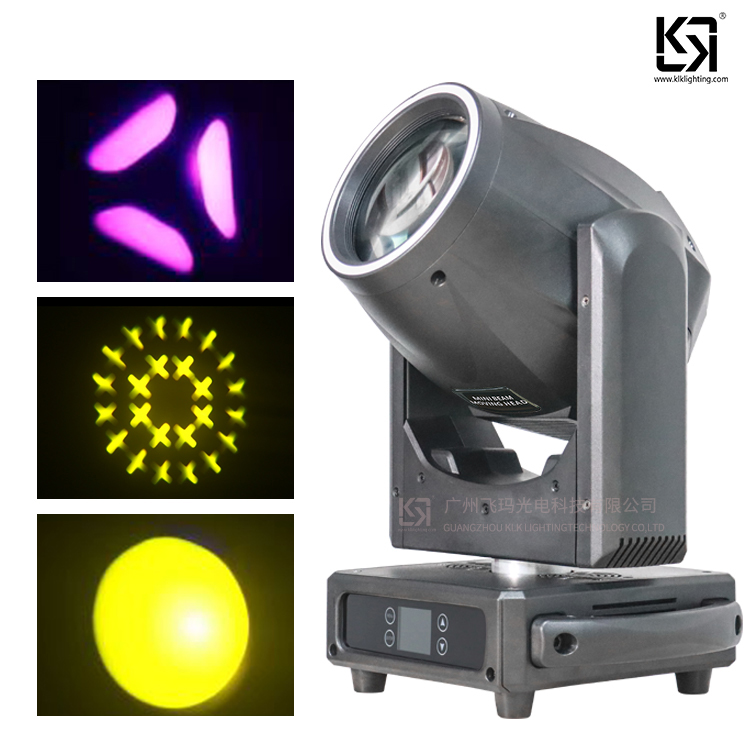

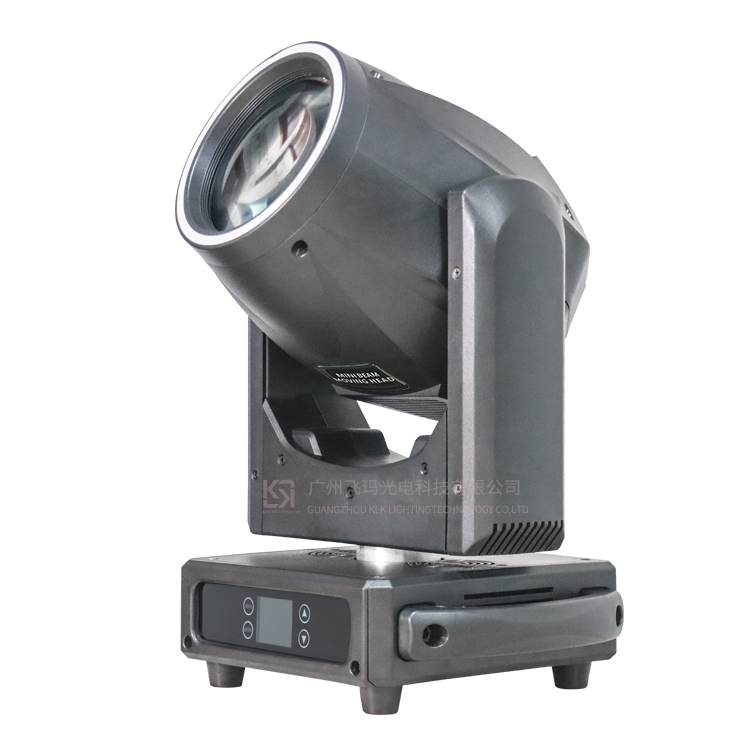

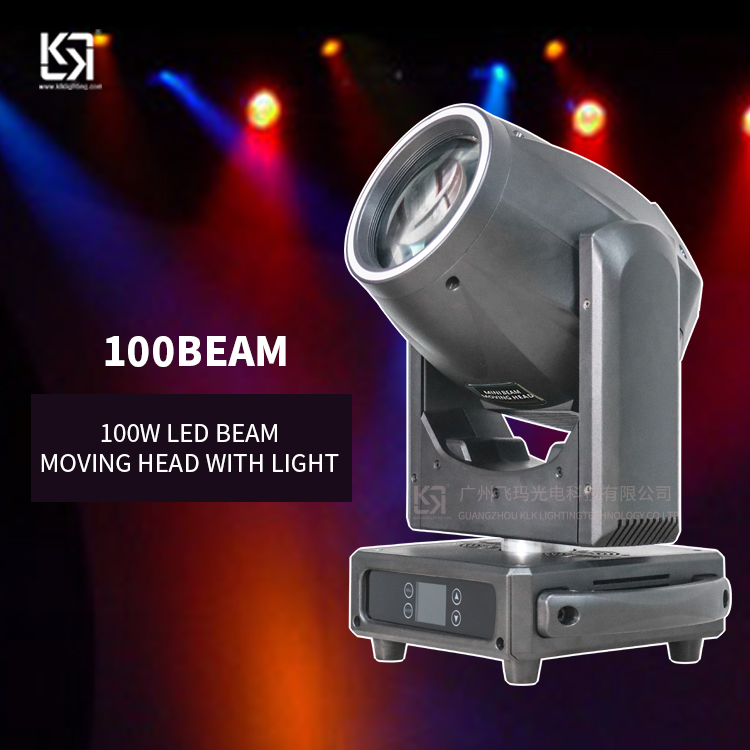

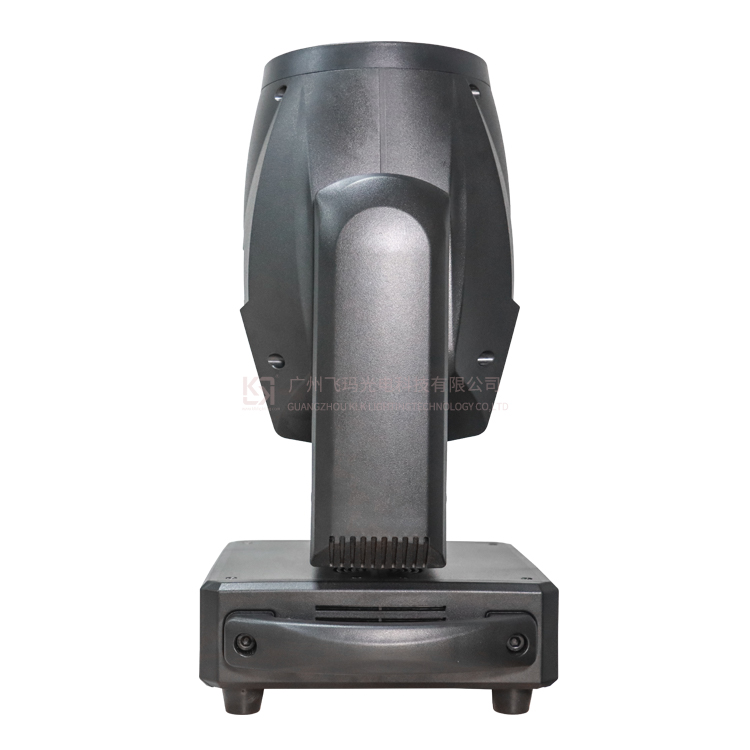

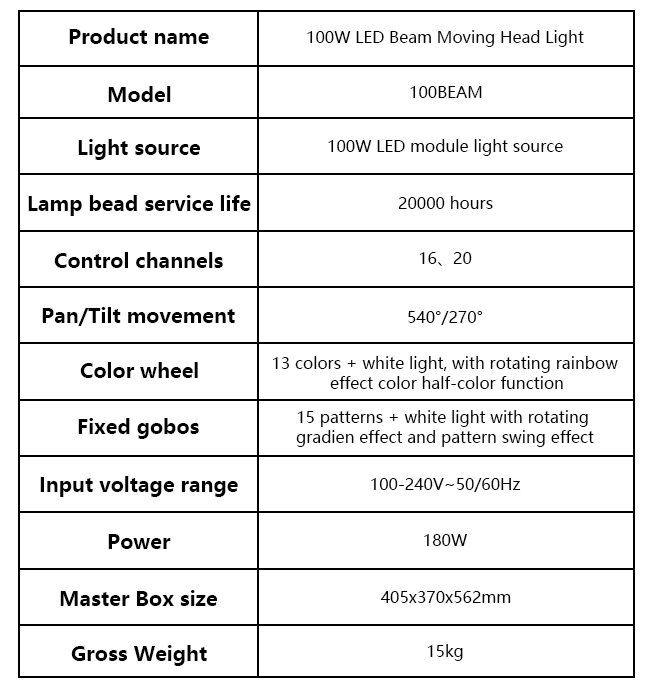

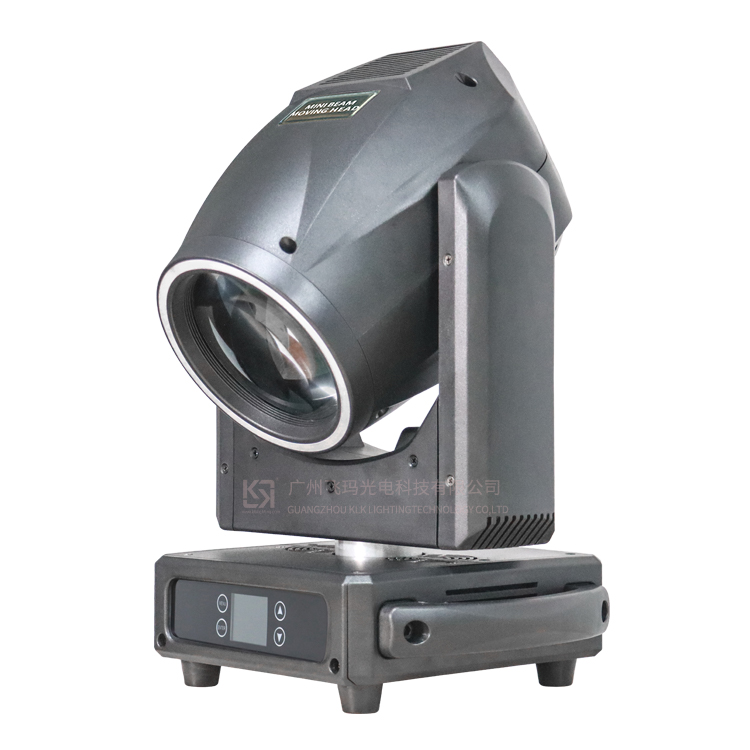

100BEAM 100W LED Beam Moving Head Light

Light Source

Light source: 100W LED module light source

Lamp bead service life: 20000 hours

Optical System

Dimming system: 0-100% linear dimming

Focusing system: linear dimming, 5 meters to infinity

Beam angle: 0-4°

Atomization system: 1 independent atomization effect，the

light spot is soft and natural

High-speed strobe: 20times/second strobe effect, adjustable speed

strobe effect, strobe macro function, with random pulse strobe effect

Control & Program

Display: 4 touch buttons

Display: LED color display

Control signal: international standard DMX512

DMX channel mode: 2

Control channels: 16,20

Macro function: console reset function

Upgrade: Upgrade via DMX512 or USB flash drive

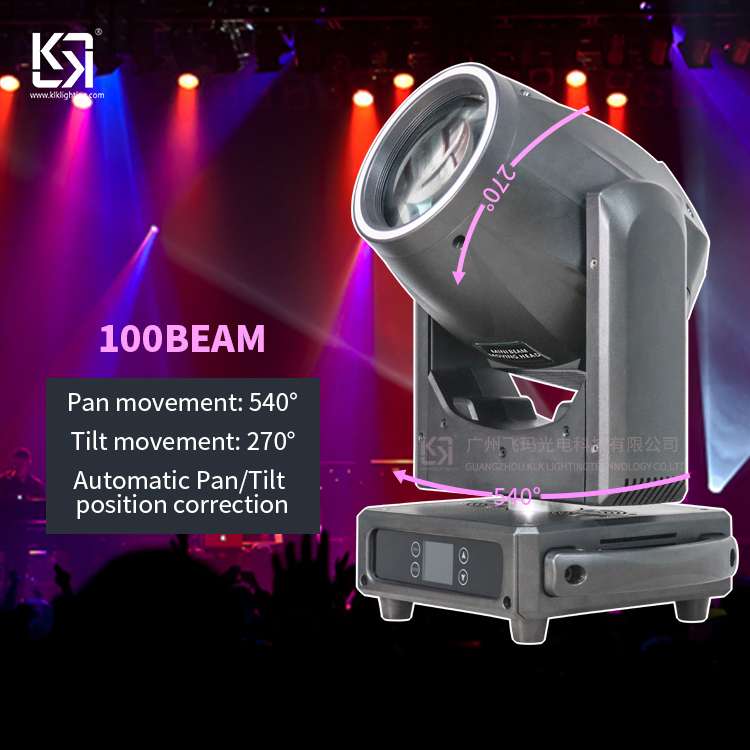

PAN & TILT

Pan movement: 540°

Tilt movement: 270°

Automatic Pan/Tilt position correction

Gobos

Fixed gobos: 15 patterns + white light with rotating gradien effect

and pattern swing effect

Gobos: Equipped with a multi-color disc for multi-colored beam effects

and multi-colored prism effects

Color wheel

Color wheel: 13 colors + white light, with rotating rainbow effect

color half-color function

Prism

Equipped with 24 prisms (three or multi-layer prisms and

single prisms are available for customers to choose)

Electrical & Interfaces

Input voltage range: 100-240V~ 50/60Hz

Power: 180 W

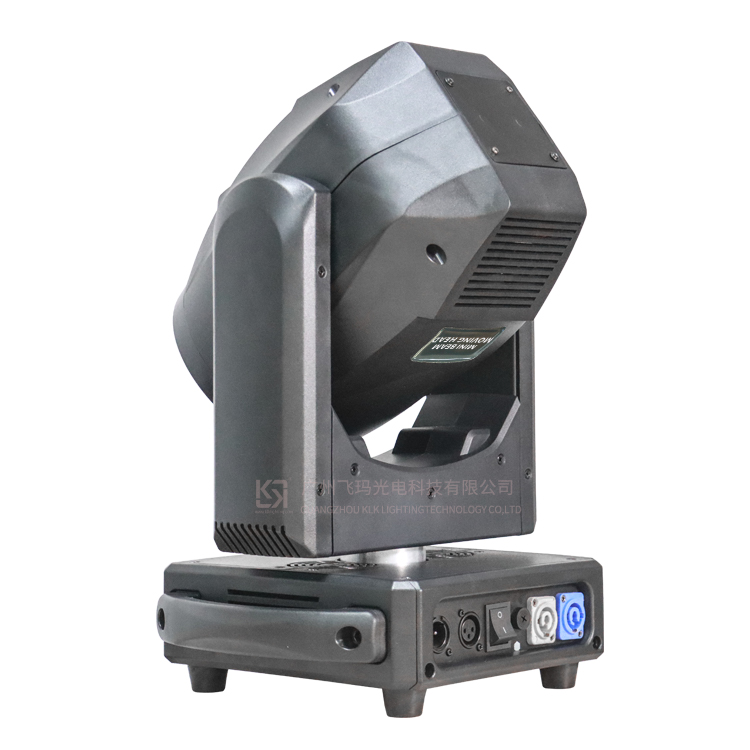

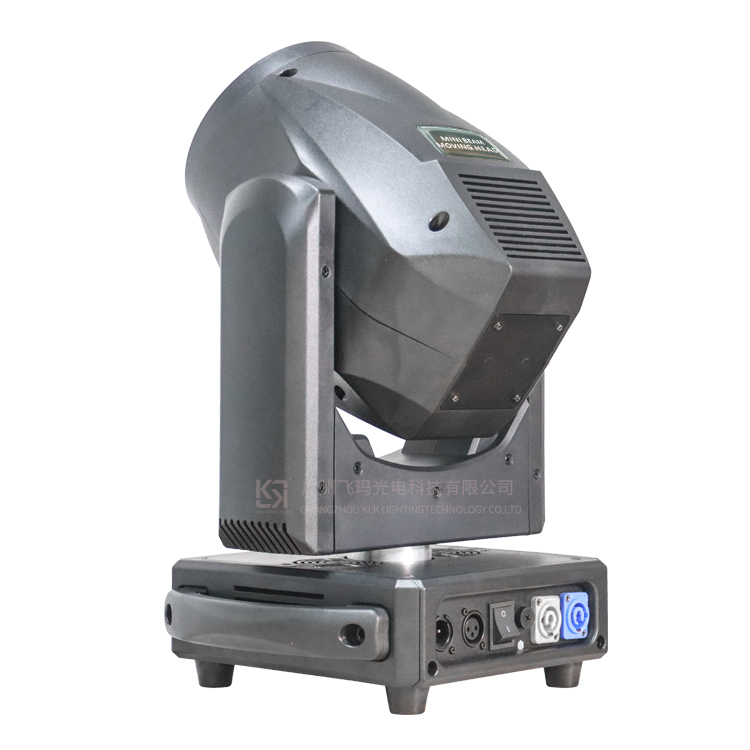

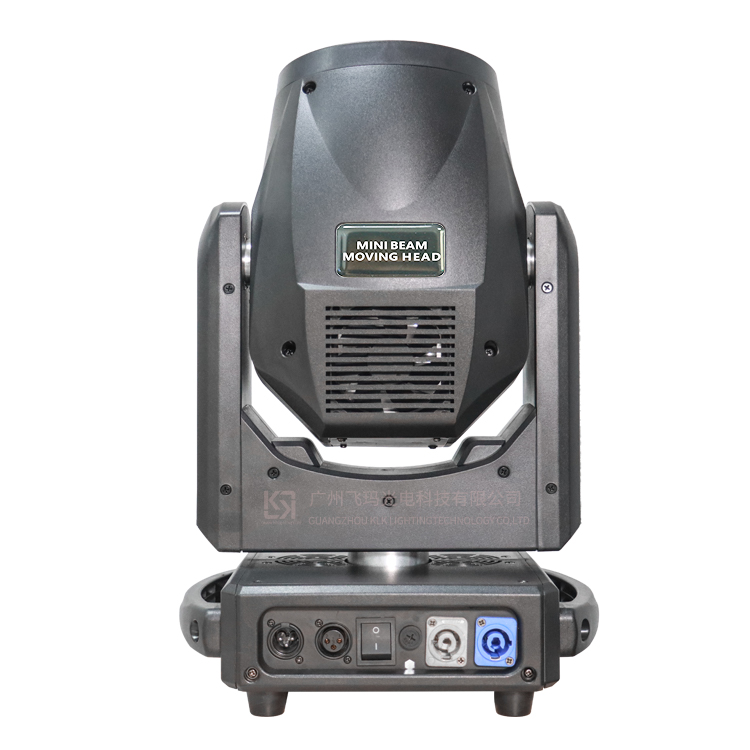

Power connection: blue and white aviation plug one in

and one out

Cooling method: Copper tube aluminum profile radiator

and ball fan ventilation cooling

Safety device: live temperature control overheat protection,

electronic temperature control automatic power-off protection

when overheating system failure

Appearance: High temperature resistant plastic

Working environment：-20°~40°

Ingress protection：IP20

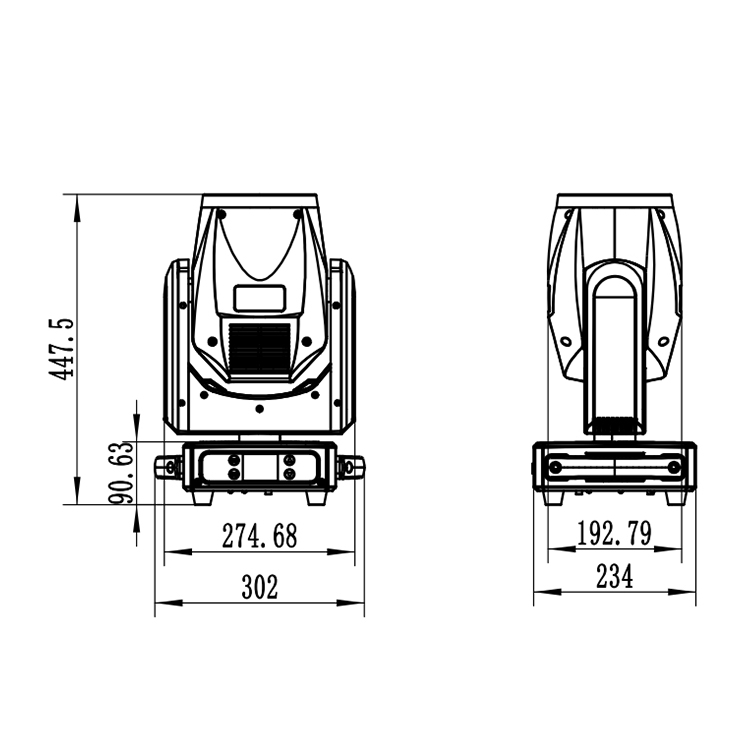

Master Box size: 405x370x562mm

Gross Weight: 15kg
