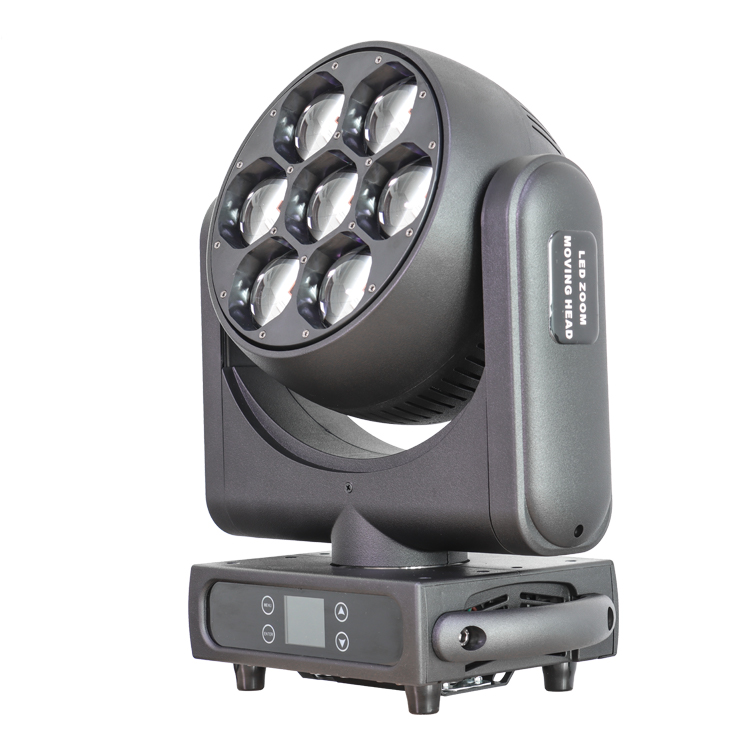

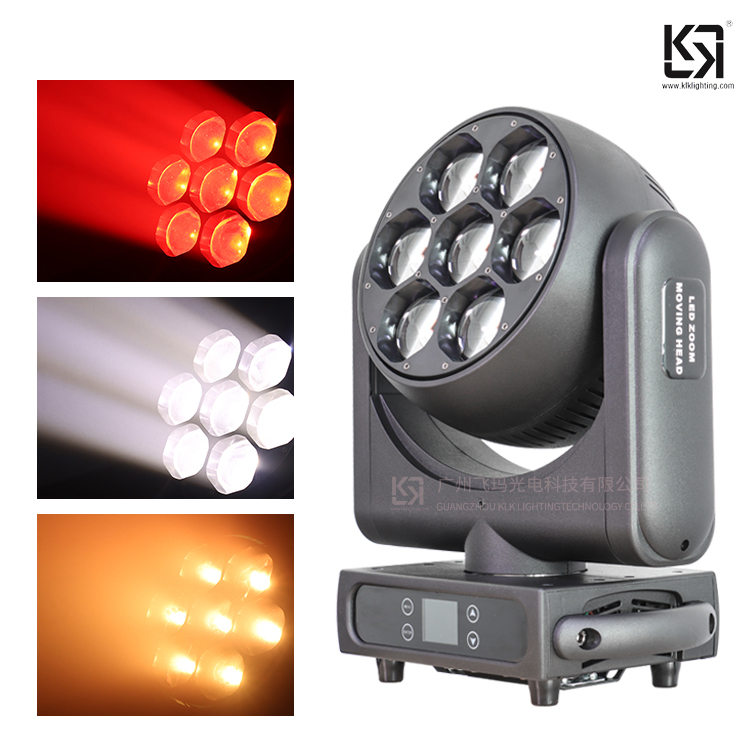

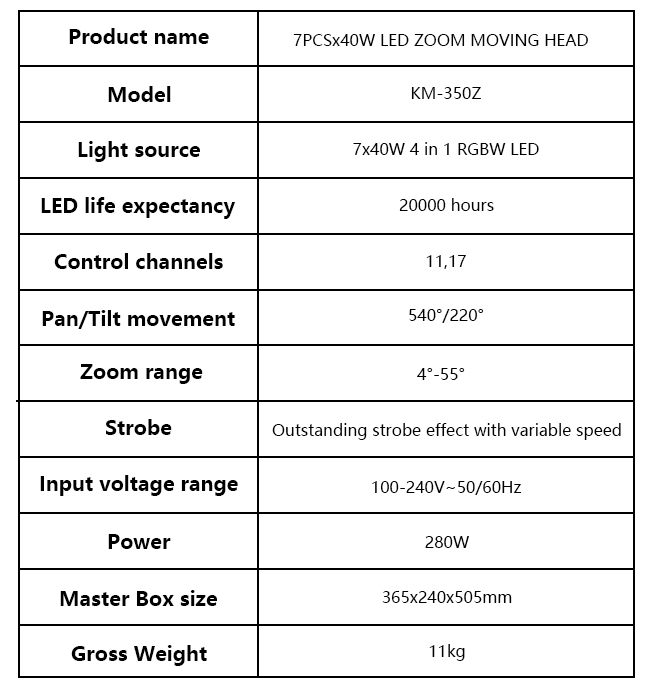

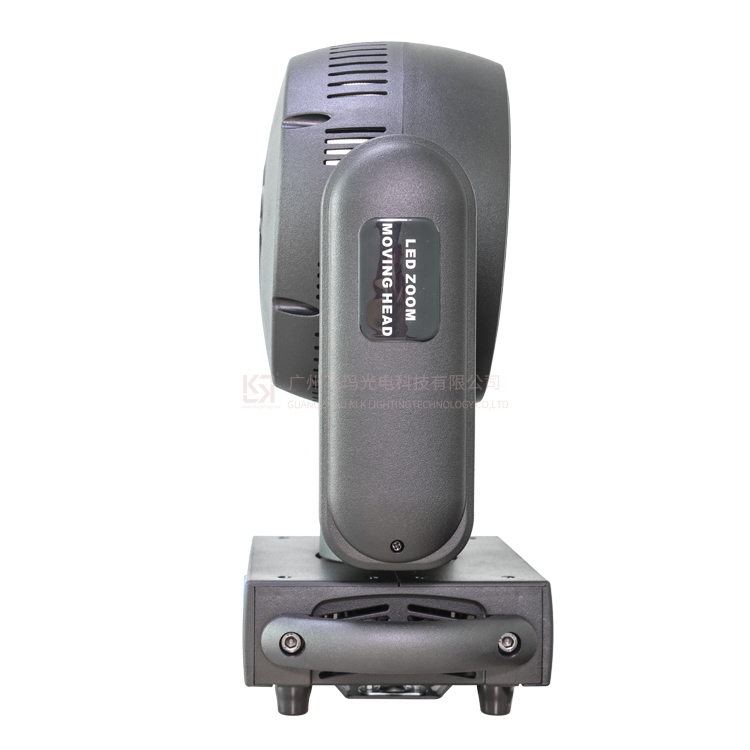

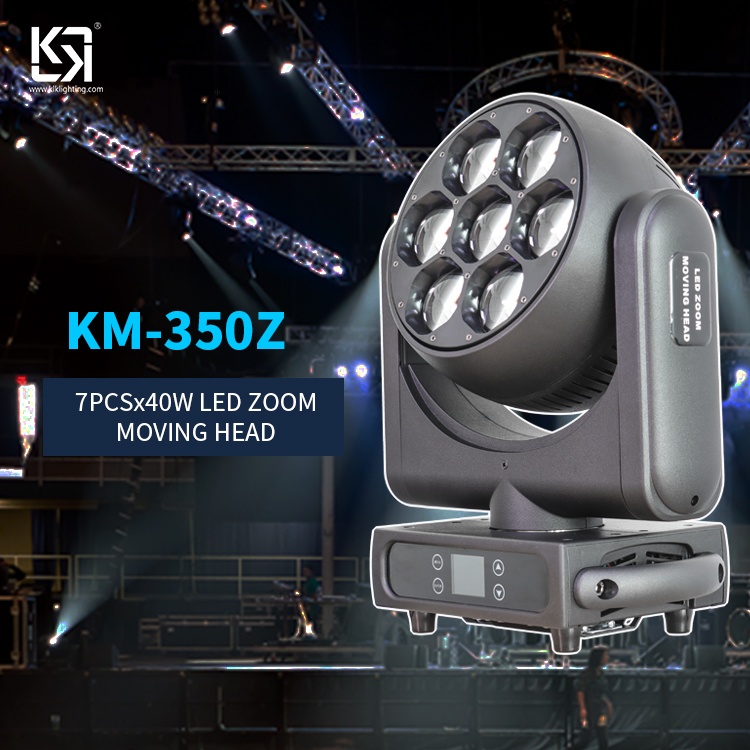

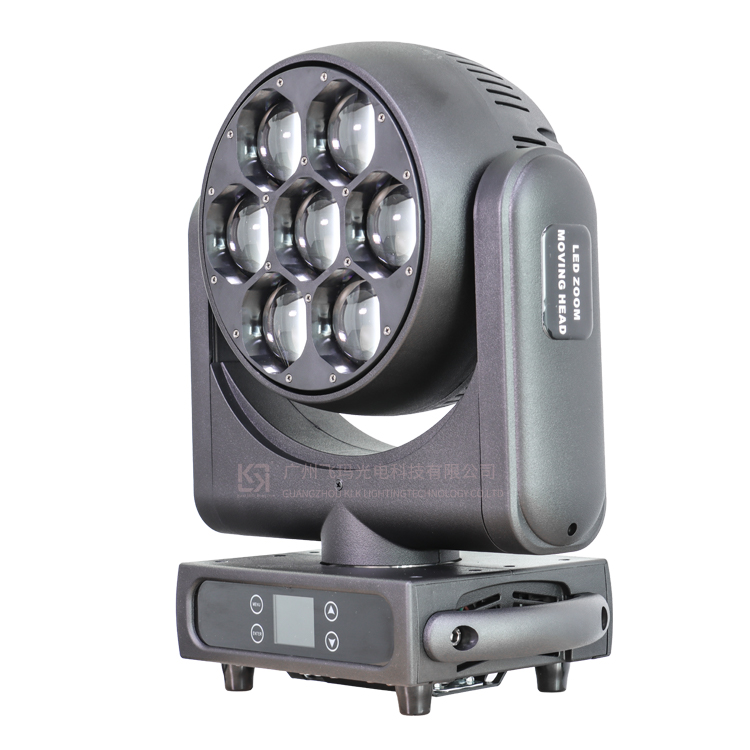

KM-350Z 7PCSx40W LED Zoom Moving Head

Light source

7 x 40W 4 in 1 RGB LEDs

LED life expectancy: 30,000 hours

Optical system

Advanced optical system to ensure clear and large-range beam & wash effect

High - efficiency zoom optical system, ratio 1:8

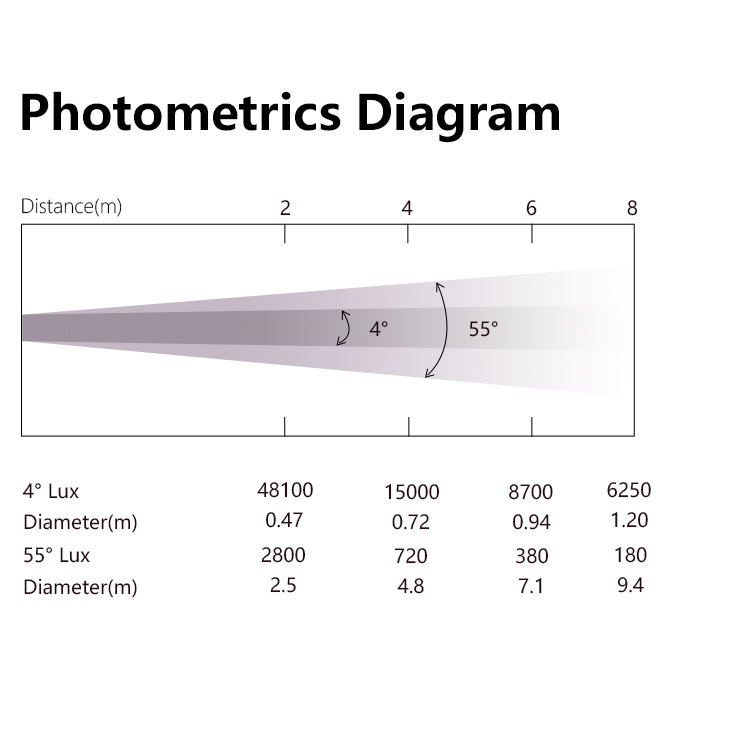

Beam angle: 4°-55°

Control and Program

4-touch buttons

Display: Color Display

Protocols: DMX512,Sound Active,Automatic,RDM

DMX Protocol modes: 2

Control channels: 11/17

Upgrade the firmware via DMX/USB link

Pan/Tilt Resolution: 16 bit

Dimmer: 16 bit

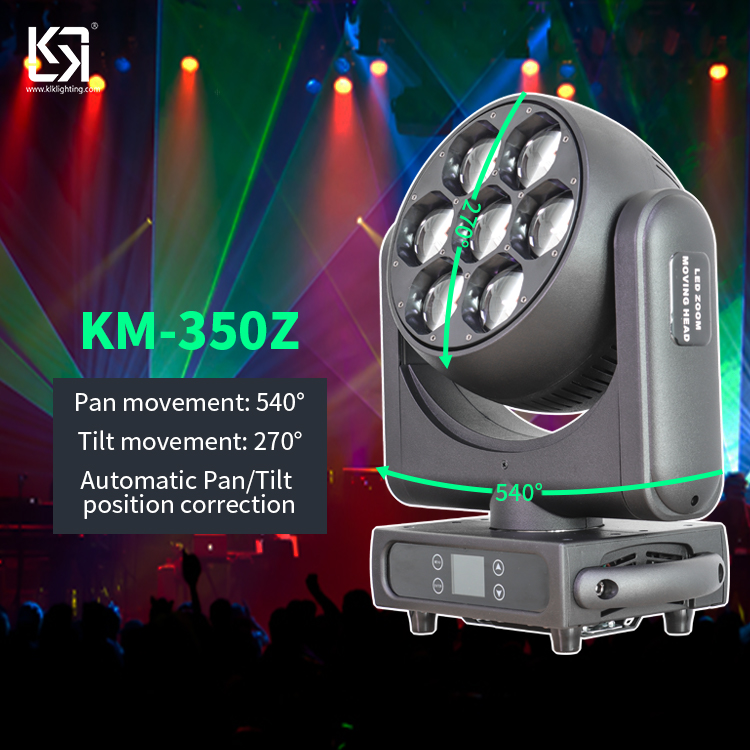

PAN & TILT

Pan movement: 540°

Tilt movement: 220°

Automatic Pan/Tilt position correction

  Effects section

3 operation modes:wash,beam effects

Digital Wash-Beam Framing effect

Beam edge softening control(in wash mode)

Pixel Patterning Macros with enhanced control

0-100% linear electronic dimmer

Adjustable speed stop/strobe effect,with instantaneous blackout

Didicated channel for color temperature setting

White CT Emulation 2500-8000K

Slow strobe:1 flash/sec;Fast strobe:25 flash/sec

Electrical and Connectors

Power supply with electronic auto-ranging

Input voltage range: 100-240V~ 50/60Hz

Power consumption: 280 W

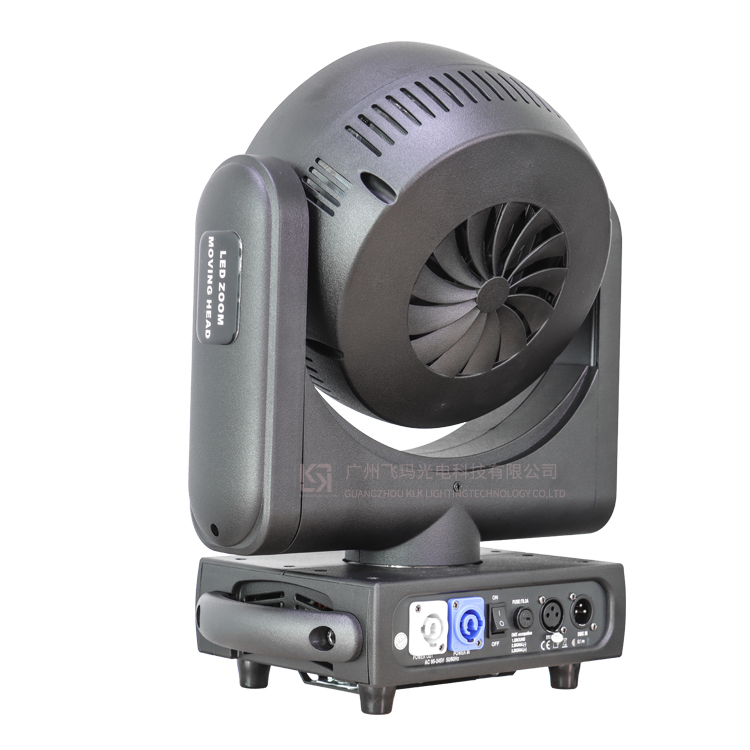

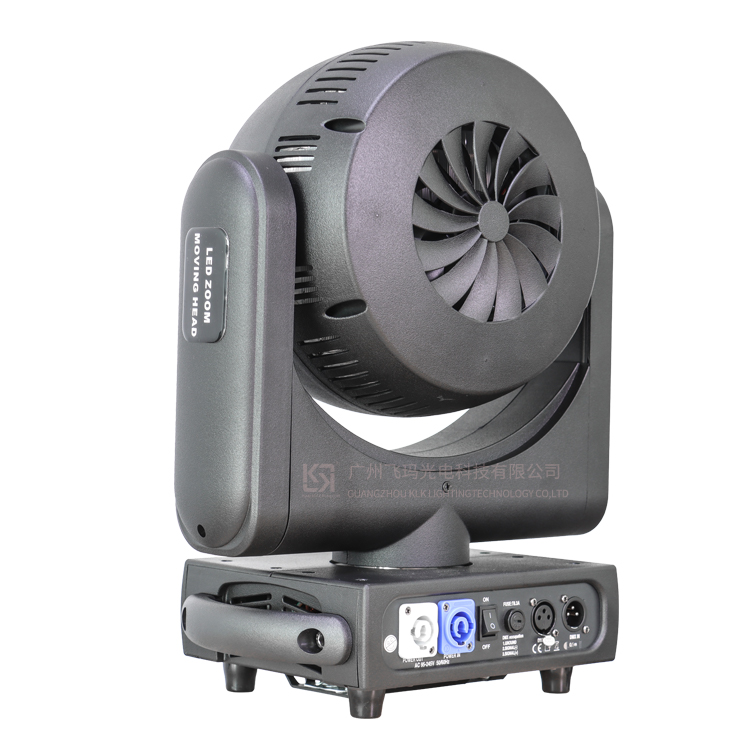

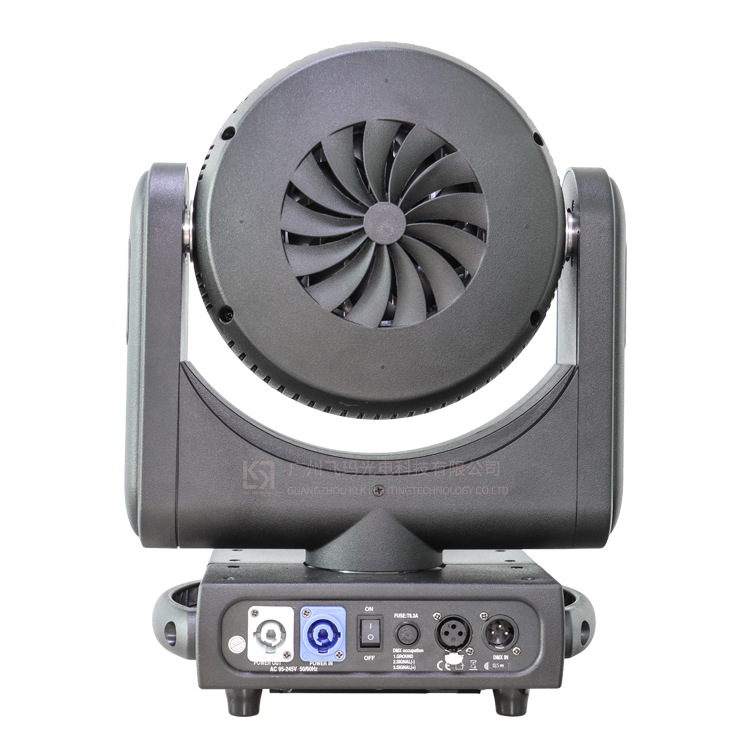

Power In/Out: Power Connector in/out

Data in/out: 3-pin or 5-pin XLR

Fixture Specification

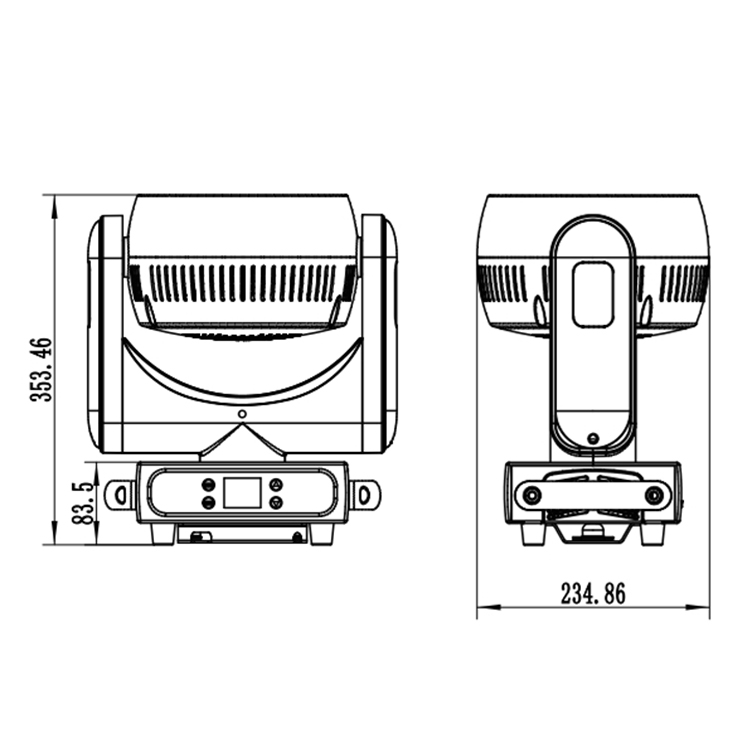

Fixture Dimensions:365x240x505mm

Weight:11KG

Included items

Digital User Manual

Power Cable

1 x omega brackets (optional with 1 x foldable fixed clamps)
