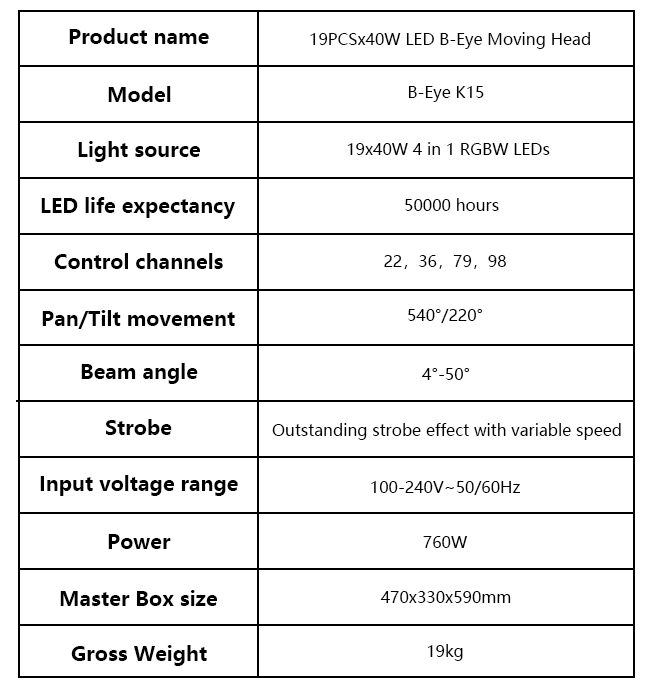

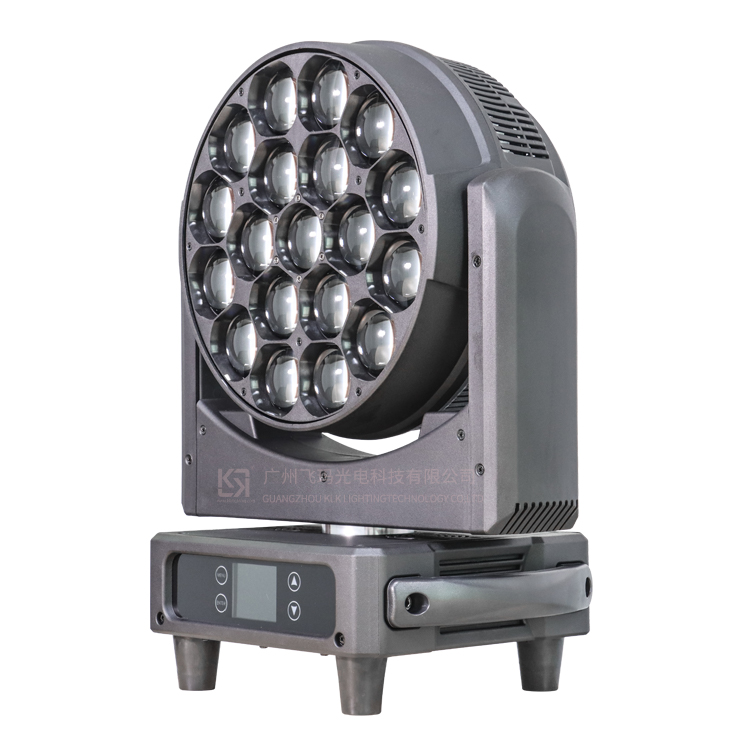

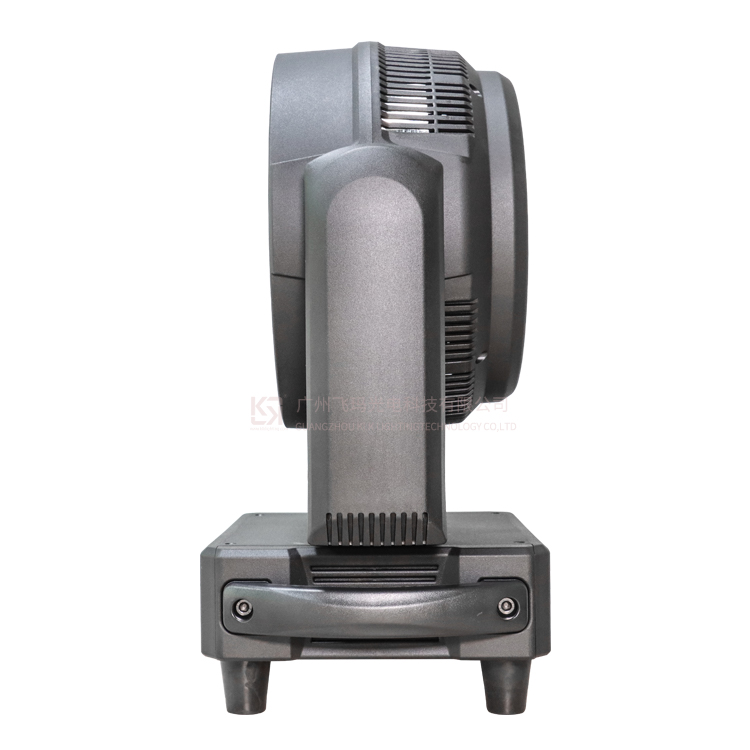

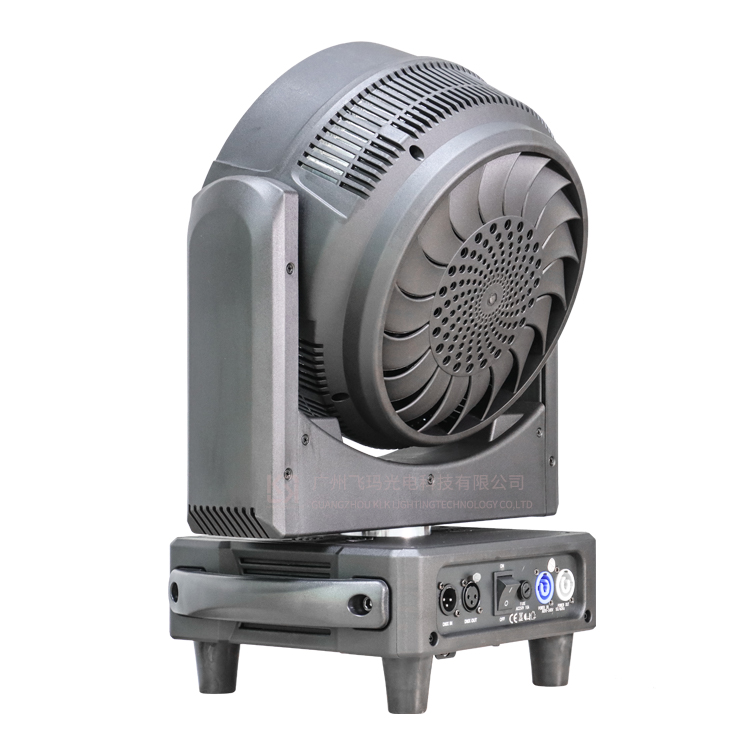

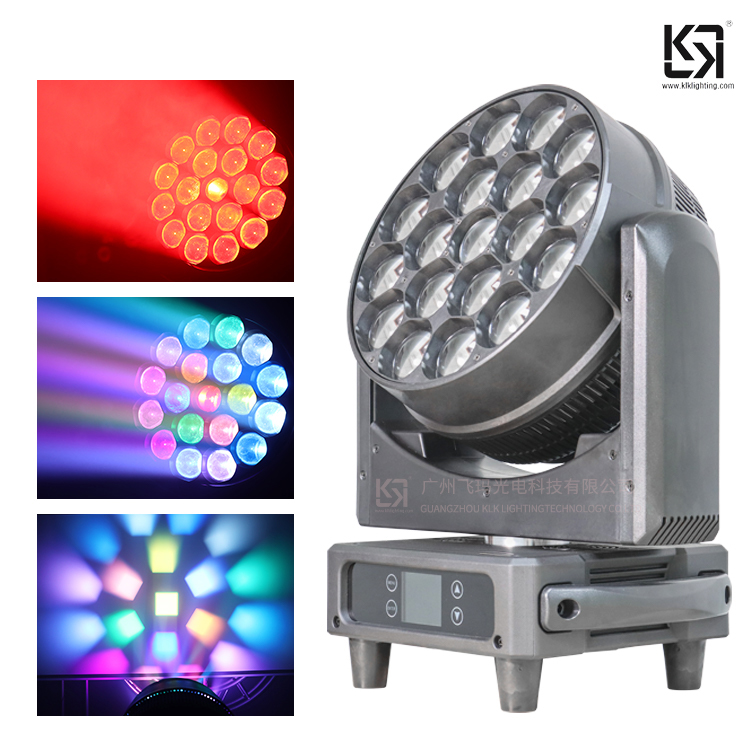

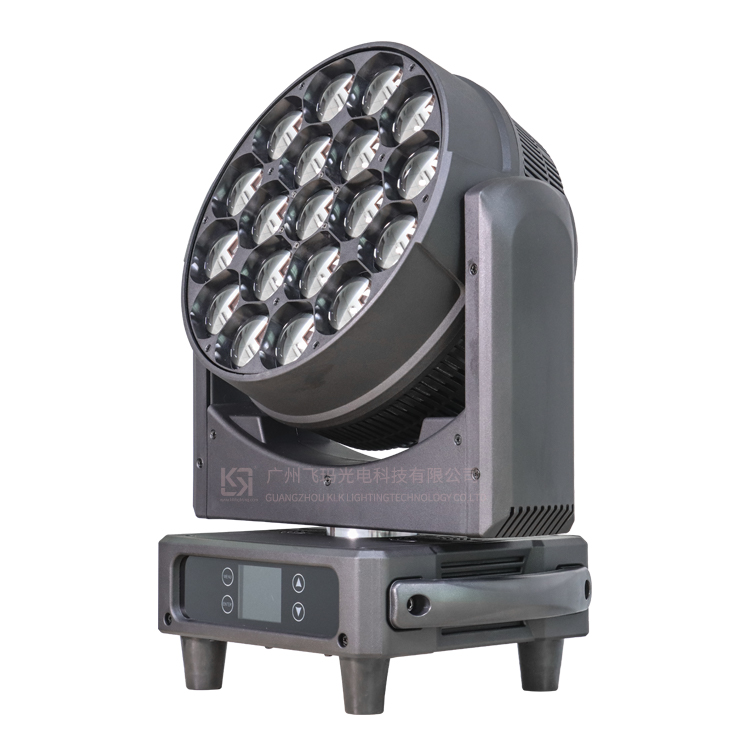

B-Eye K15 19PCSx40W LED B-Eye Moving Head

Light source

19 x 40W 4 in 1 RGBW LEDs

LED life expectancy: 50,000 hours

Color Temperature:6000K

Optical system

Advanced optical system to ensure clear and large-range beam & wash effect

High - efficiency zoom optical system, ratio 1:8

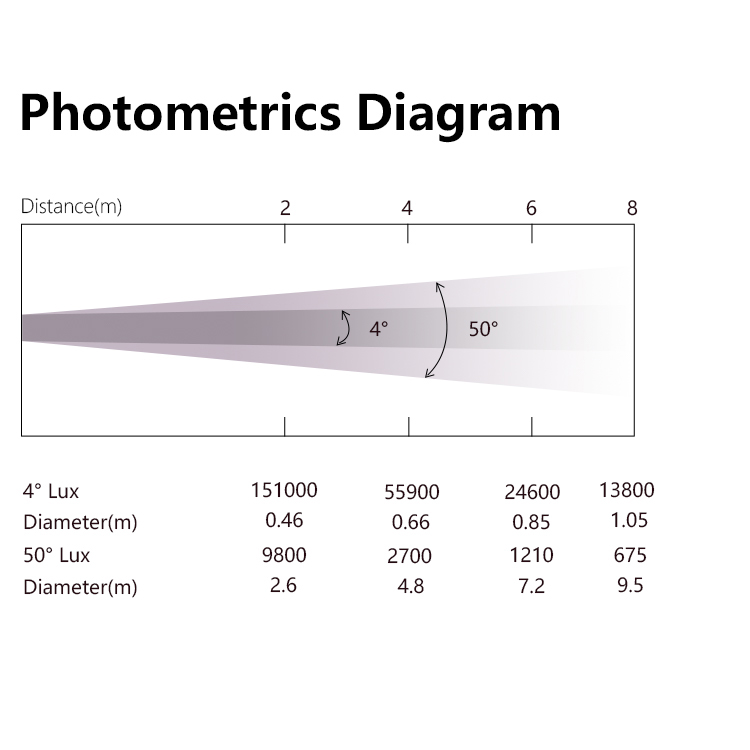

Beam angle: 4°-50°

Control and Program

4-touch buttons

Display: Color Display

Protocols: DMX512,Sound Active,Automatic,RDM

DMX Protocol modes: 4

Control channels: 22，36，79，98

Upgrade the firmware via DMX/USB link

Pan/Tilt Resolution: 16 bit

Dimmer: 16 bit

PAN & TILT

Pan movement: 540°

Tilt movement: 220°

Automatic Pan/Tilt position correction

  Effects section

P3 operation modes:wash,beam,FX(Kaleido effects)

Bi-directional Rotating Front Lens

Digital Wash-Beam Framing effect

Beam edge softening control(in wash mode)

Pixel Patterning Macros with enhanced control

0-100% linear electronic dimmer

Adjustable speed stop/strobe effect,with instantaneous blackout

Didicated channel for color temperature setting

White CT Emulation 2500-8000K

Slow strobe:1 flash/sec;Fast strobe:25 flash/sec

Electrical and Connectors

Power supply with electronic auto-ranging

Input voltage range: 100-240V~ 50/60Hz

Power consumption: 760 W

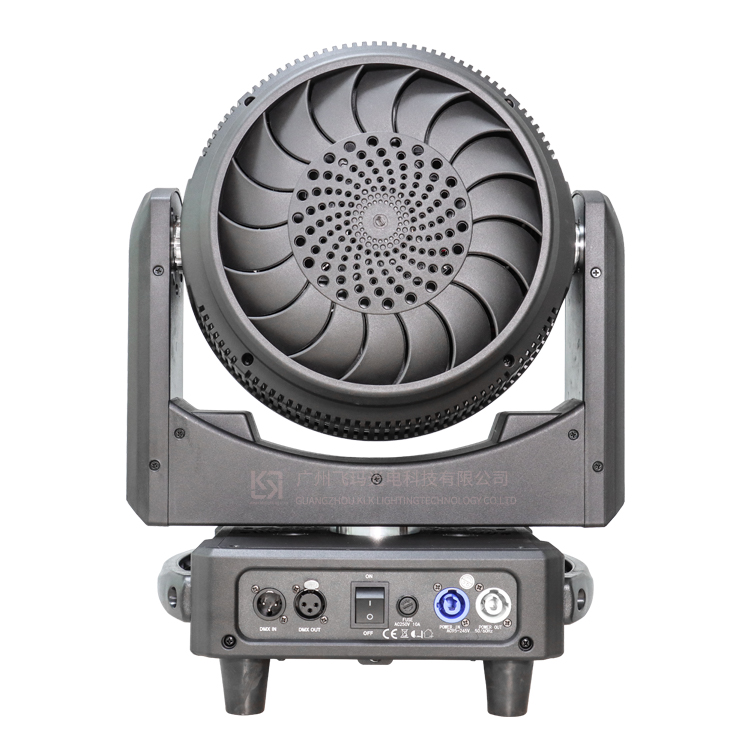

Power In/Out: Power Connector in/out

Data in/out: 3-pin or 5-pin XLR

Fixture Specification

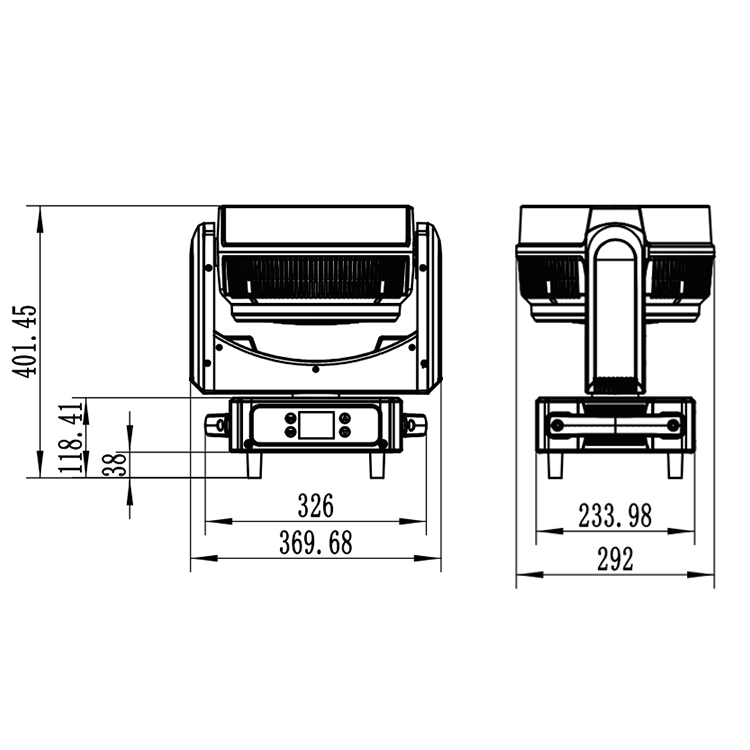

Fixture Dimensions:490x350x620mm

Flight Case Dimensions:750x440x700mm

Weight:65KG

Included items

Digital User Manual

Power Cable

2 x omega brackets (optional with 2 x foldable fixed clamps)
