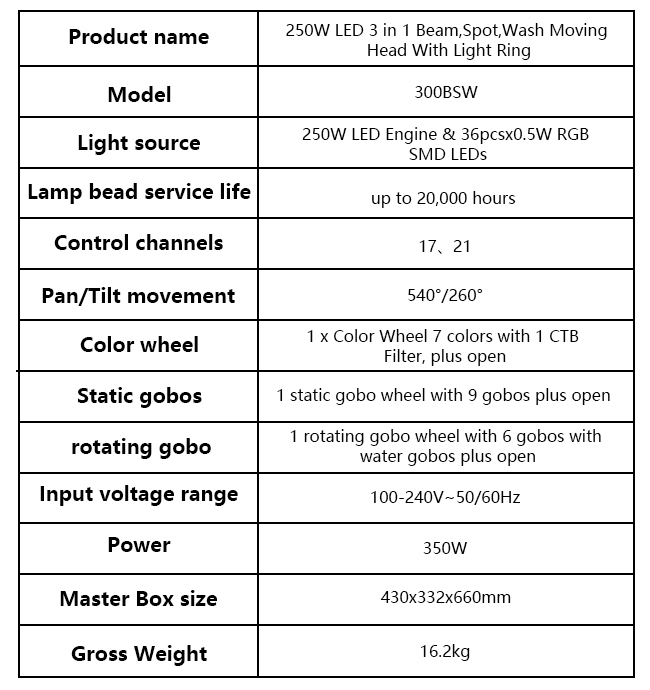

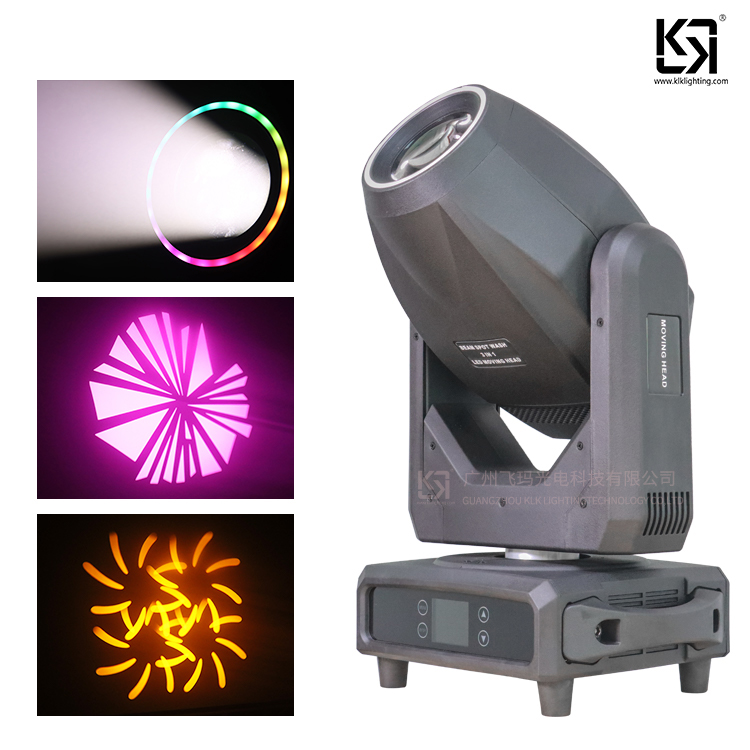

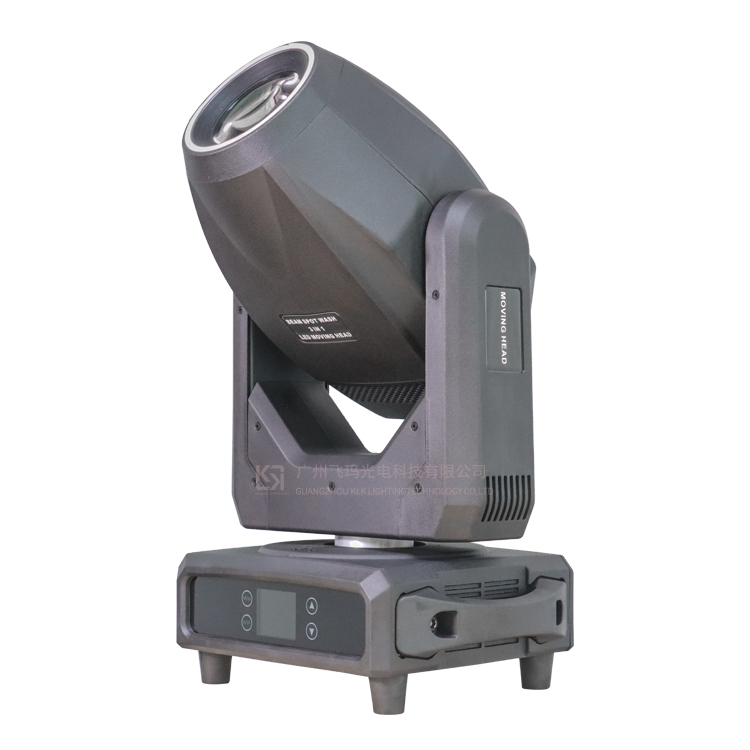

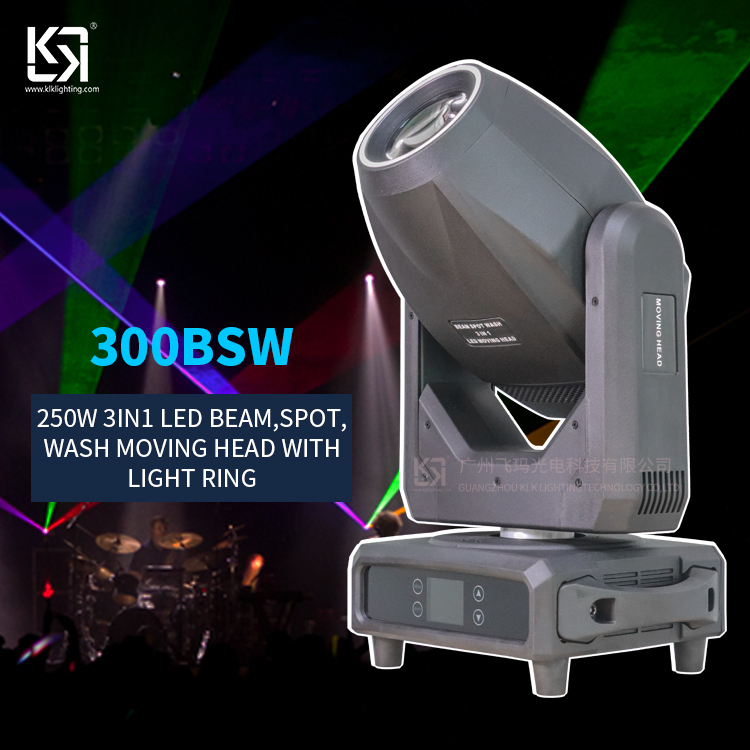

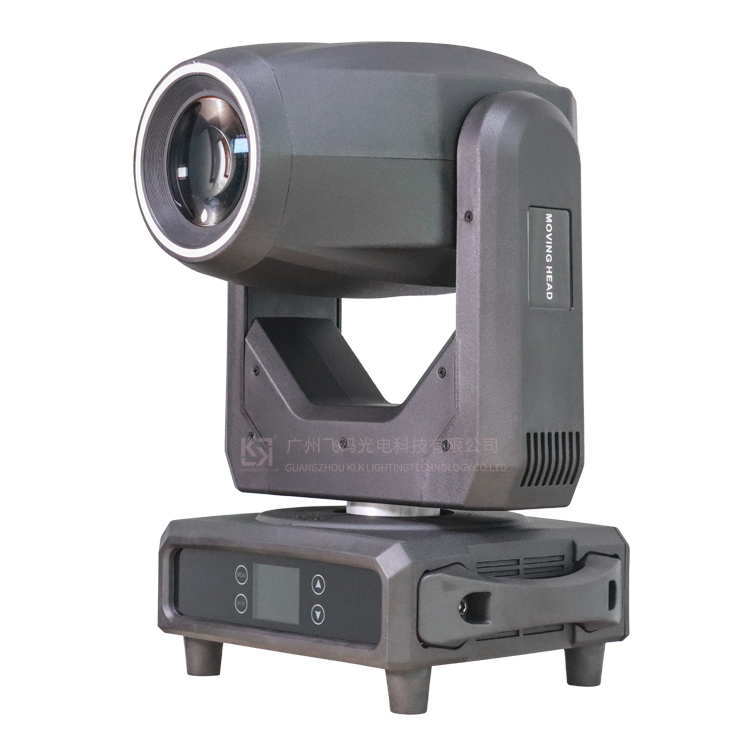

300BSW 250W 3 in 1 LED Beam,Spot,Wash Moving Head With Light Ring

Light Source

Light Source: 250W LED Engine & 36pcsx0.5W RGB SMD LEDs

Color Temperature Output: 7,000K

Rated Source Life: up to 20,000 hours

Optical System

Advanced optical design to ensure precise gobos and colors

High - efficiency zoom optical system

Beam Angle: 7°-35°

Diameter of Front Lens: 165mm

Control and Program

4-Button touch panel

Display: LCD display

Protocols: DMX512, Automatic,Sound active,RDM, Art-Net

DMX Protocol modes: 2

Control channels: 17 / 21

Firmware Upgrade: Upgrade via DMX link or USB disk

Movement

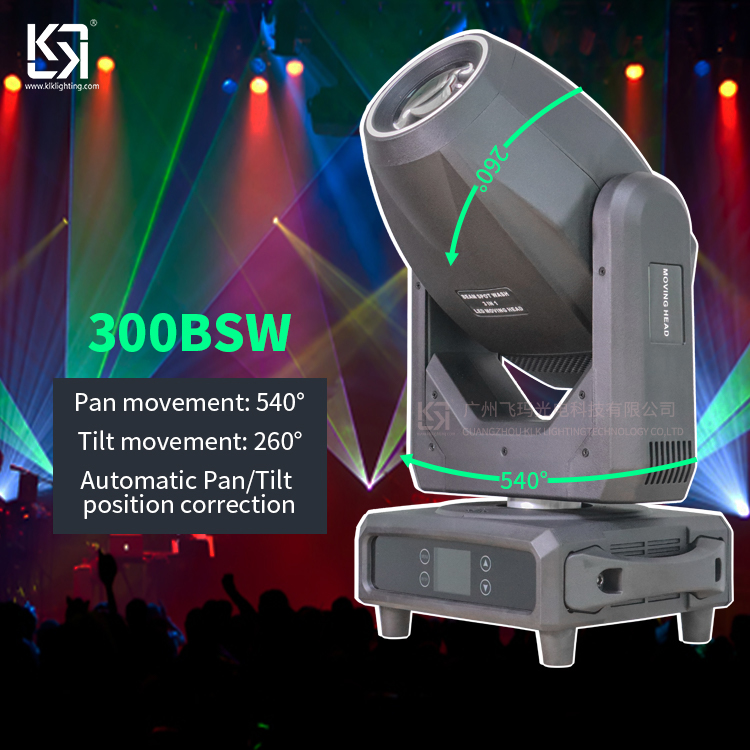

Pan movement: 540°

Tilt movement: 260°

Automatic Pan/Tilt position correction

Moving-head operated with either 16-bit resolution

Fixation: Pan/ Tilt lock

Color

Linear CTO Color Correction:2,700K-7,00K

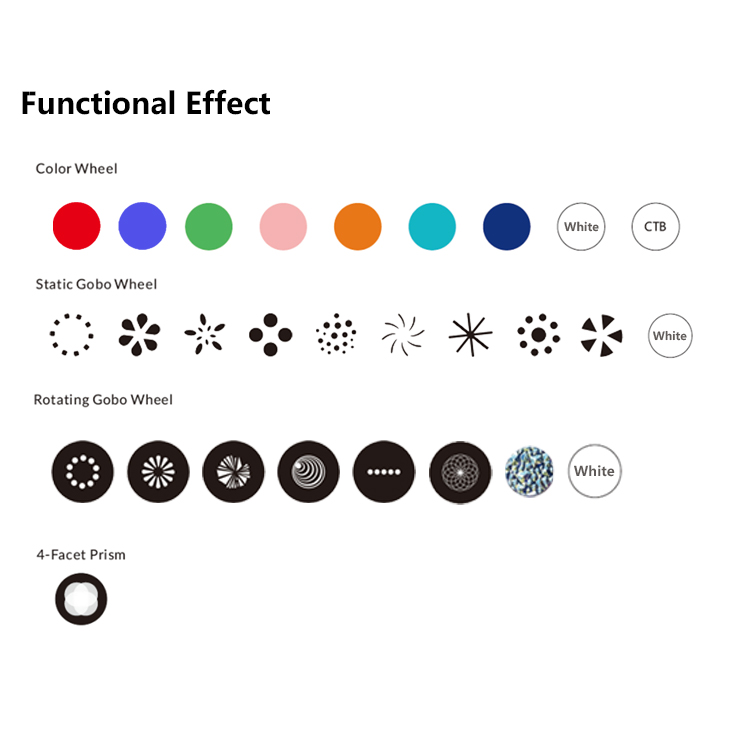

1 x Color Wheel: 8 colors with 1 CTB Filter, plus open

Gobo

1 x Static Gobo Wheel: 1 x Static Gobo Wheel with 9 high-precision glass gobos, plus open

1 x Rotating & Interchangable Gobo Wheel: 1 rotating gobo wheel with 6

gobos with water gobos plus open

Gobo Diameter: 23.8mm，Image Diameter: 14mm

Adjustable-speed rotating gobo in both directions

Prism

1 x Combinable Rotating and Indexable Prisms: one 4-facet prism

Other Effects

Outstanding strobe effect with variable speed

Motorized Zoom and Focus

4 Dimming Curves: Variable light adjustment from 0 to 100%

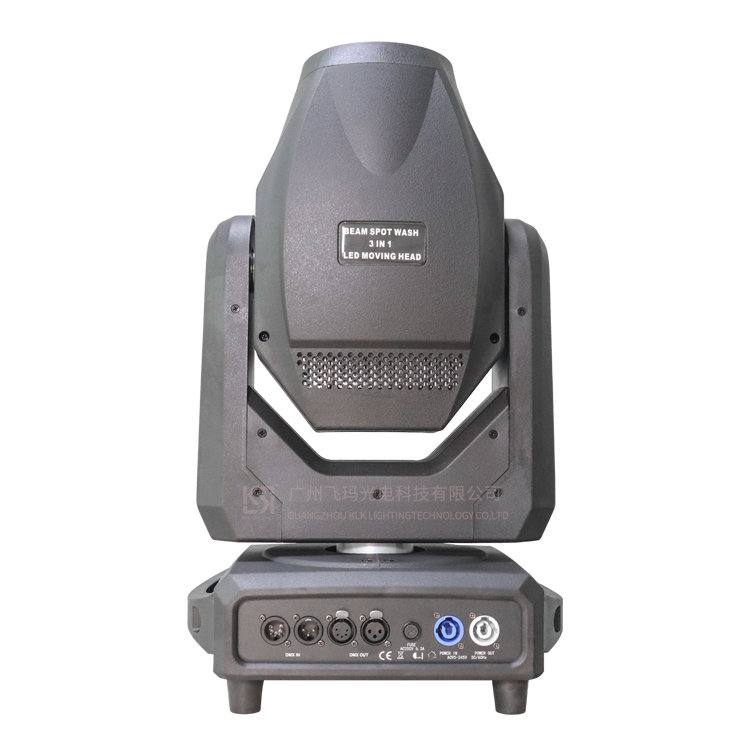

Electrical and Connectors

Input voltage range: 100-240V~ 50/60Hz

Power consumption: 400 W

Power In/Out: Power Connector in/out

Data In/Out: 3-pin or 5-pin XLR

Carton Dimensions:490x340x620mm

Weight: 20 kg (include carton，one-pack per carton)

Factory Configuration

User Manual

Power Cable

2x Fast-locked clamps
