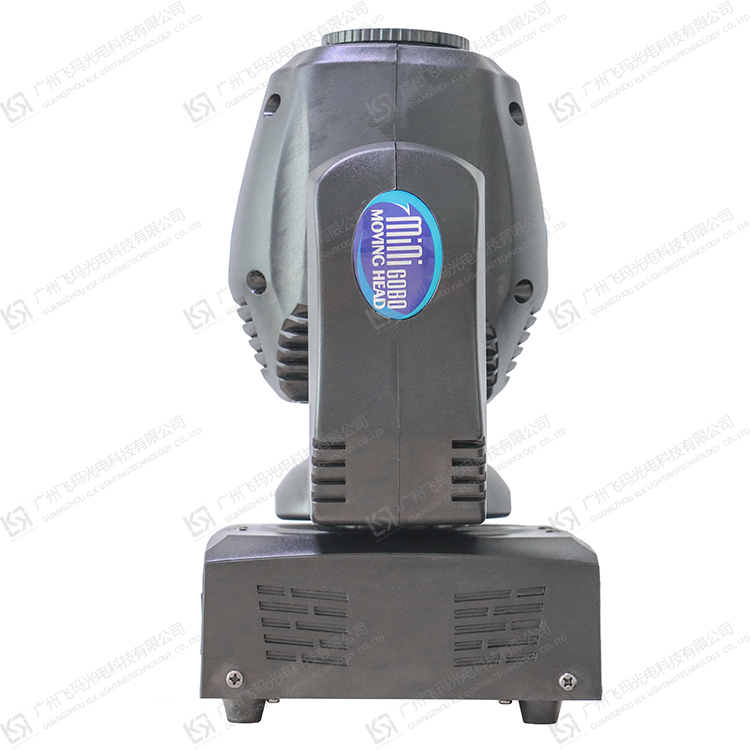

KA-45 45W LED SPOT MOVING HEAD
Light Source
Light Source: 1x45W LED
Beam Angle: 13°
LED life expectancy: 20000 hours
Optical System
Advanced optical system to ensure image quality, clear and sharp
Beam Angle: 13°
Control and Program
Display: LED display
Protocols: DMX512,Master/Slave,Sound Active
DMX Protocol modes: 2
Control channels: 9/11 Channel
Pan/Tilt Resolution: 16 bit
Dimmer: 8 bit or 16 bit
PAN & TILT
Pan movement: 540°
Tilt movement: 270°
Static Gobos
1 x static gobos with 7 gobos plus white
Color Wheel
1 x color wheel with 7 colors plus white
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 60 W
Power Connector input/output

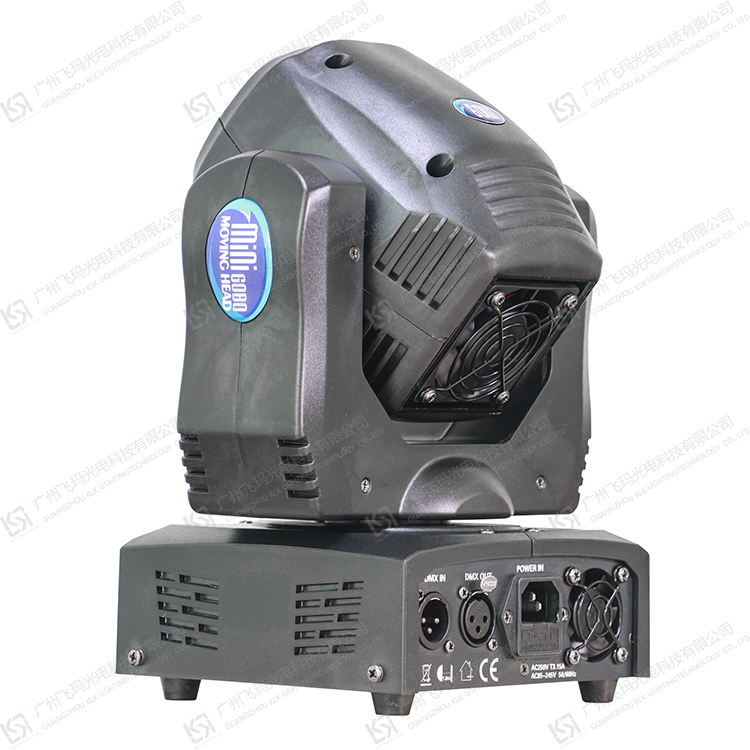

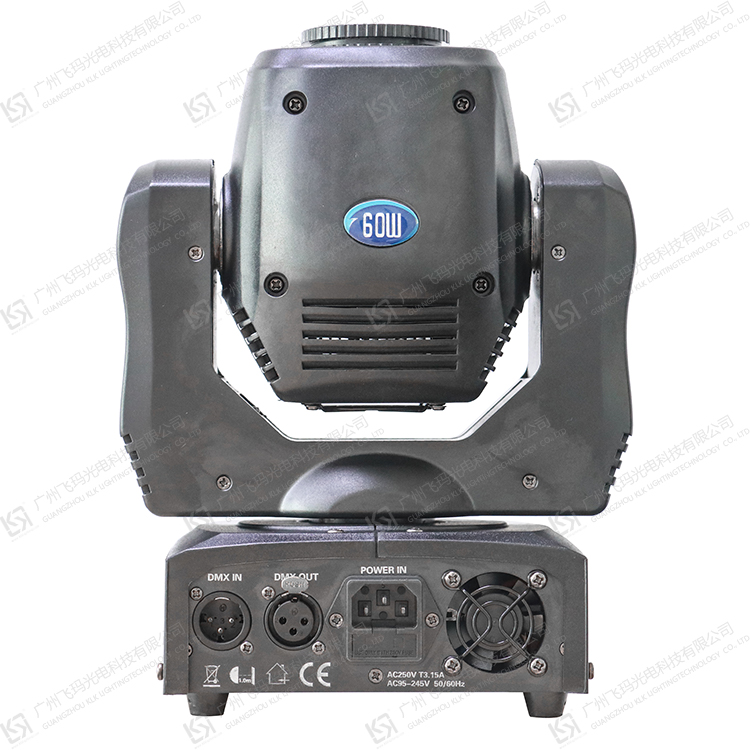

Data in/out: 3-pin or 5-pin XLR
Inner Box Size:275x210x250mm
Master Box Size:440x290x580mm
Weight:3.5KG
